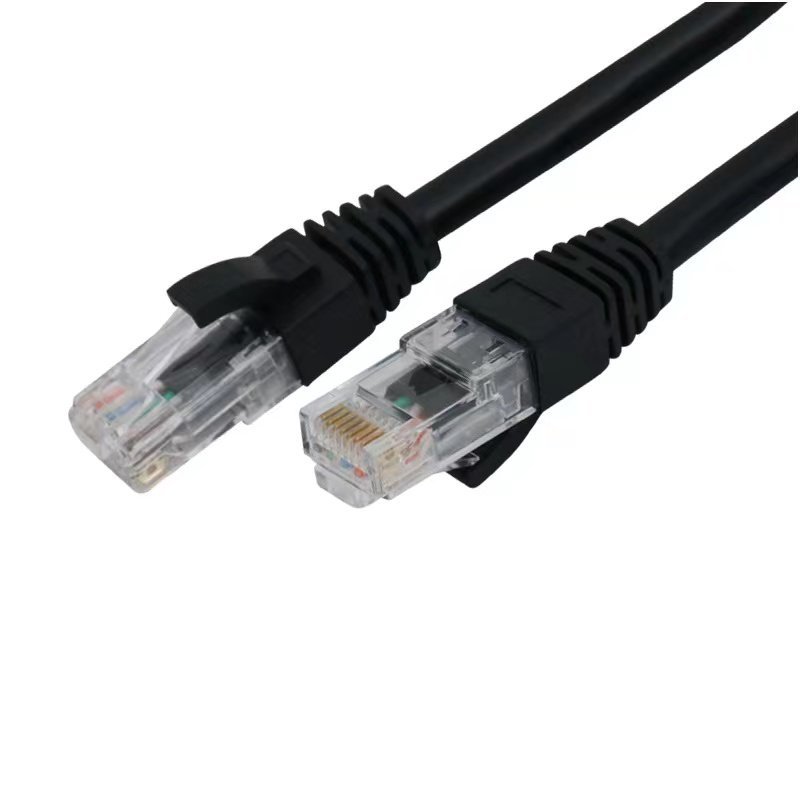

CAT5E UTP Ethernet Flat Patch Cable,RJ45 Unshield

●Small OD and flexibly cable and extreme performance design for Hyper-Scale and Edge Data Center
●100% Cat.5e performance tested in factory
●Farsince Cat5E U/UTP Unshielded Crossover Patch Cable is perfect for connecting two computers to share files or data. The crossed pin configuration allows two computers to be connected peer-to-peer without the need for a hub or switch
●This cable may also be used to connect network switches and hubs without an uplink port to other switches and hubs. Build your home or office network with 1000 Base-T Gigabit Ethernet
●This cable meets or exceeds Category 5E performance in compliance with the TIA/EIA -568-C.2 specifications. The connectors with gold-plated contacts, molded strain- relief boots, and snagless molds resist corrosion, provide durability, and ensure a secure connection
● Flexible and durable Cat5E Crossover cable with high bandwidth of up to 350 MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • Specification

Features

●Compaliant with the ISO/IEC11801-1 class E and ANSI/TIA 568.2-D Cat.5e channel performance
●Real U/UTP cable structure without any metallic shield design
●Stranded cable for maximun flexibility
●Power over HDBaseT applications up to 100W
●Meets or exceeds TIA/EIA -568B Cat5e and ISO/IEC 11801 Specifications
●Ideal for Data center architectural requirments
●Available with different color of cable
●Available with different length
●ROHS, REACH Compliant

Standard Compliance

●ISO/IEC 11801
●ANSI/TIA-568.2-D
●ANSI/TIA-1096-A
●EN50173-1
●UL444

Specification

●Conductor : Bare copper
●Wire Gauge: 24AWG 7/0.20±0.008mm
●Insulation: PE/HDPE
●Insulation color: Blue/White,Blue; Orange/White, Orange;Green/White,Green; Brown/White,Brown
●Shielding: Unshielded
●Jacket Options: PVC/LSZH
●Outer diameter: 5.4±0.2mm
●Connector 1: RJ45 Cat5e
●Connector 1: RJ45 Cat5e
●Contact: Gold plated, Nickel plated shell
●Testing: Fluke tester
