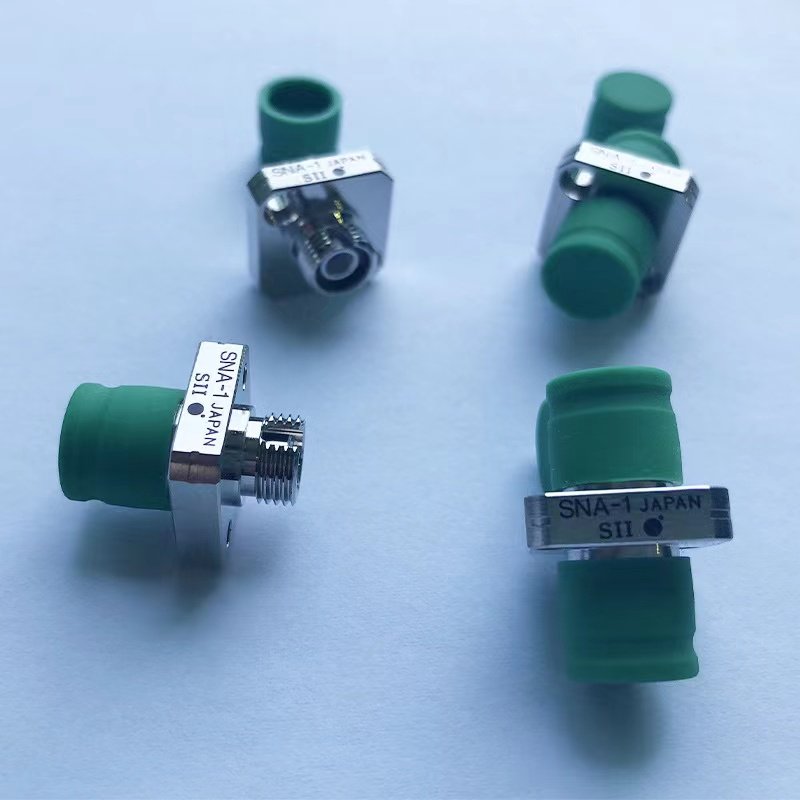

FC/APC Fiber Optical Adapter

●A fiber optic adapter is a device that is detachably (active) connected between fiber and fiber,sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines
●By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

PRODUCT DETAIL
SPECIFICATION

Features

●low insertion Loss and high return loss
●Zirconia Ceramic Sleeve with High-precision Alignment
●Protective Dust Cap Keeps Adapter’s Interior Clean from Dust
●Threaded Adapter Provides Easy Installation and Removal
●Stable capability and high reliability
●Available in A Variety of Connector Types

SPECIFICATION

●Model:FC/APC to FC/APC
●Fiber Mode:Singlemode
●Insertion Loss:≤0.2dB
●Durability:1000 times
●Alignment Sleeve Material:Ceramic
●Flammability Rate:UL94-V0
●Operating Temperature (℃):-40~80
●Color:Customized
